Microsoft Flight Simulator FAQ

Search for answers to your questions by entering keywords below, or look through our knowledge base.

How to fix pink textures and graphic artifacts

Follow

This issue occurs when the texture files for the aircraft/scenery are corrupt or have been overwritten by add-on mods.

This can happen with 3 different scenarios:

  • You are installing the Sim for the first time, or you are doing a reinstall
    → There are issues with file download or decompressing that causes the file(s) to get corrupt
  • You are updating the Sim
    → There are issues with file download or decompressing that causes the file(s) to get corrupt
  • You have installed 3rd party add-on(s) that is/are causing a conflict with the core sim files

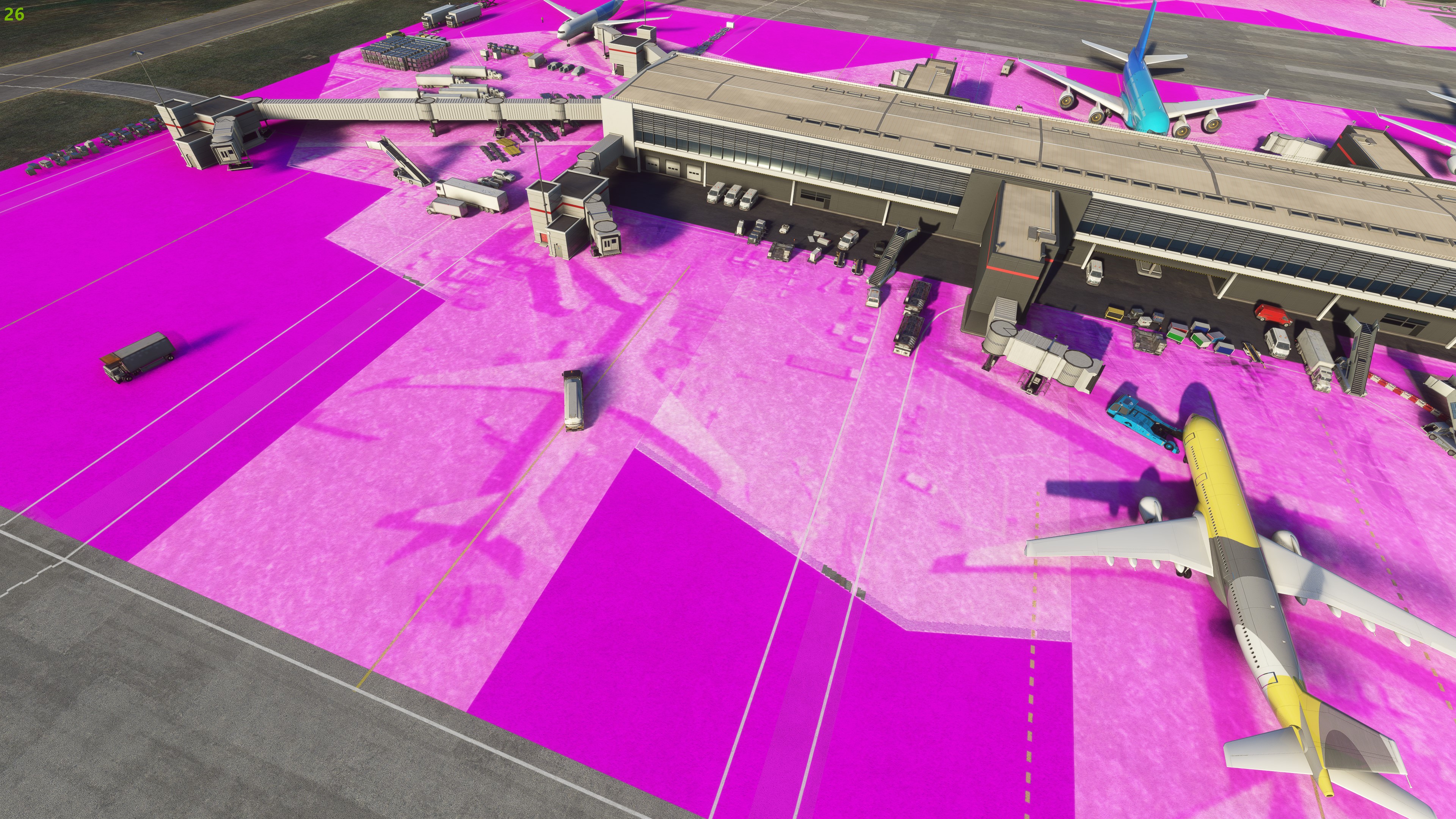

Example of the issue:

Pink



HOW TO FIX THE ISSUE

  1. Remove all 3rd party add-ons from your Community and Official folders.
    How to restore the sim to its vanilla state to get back in game
    → If the issue persists
  2. Locate your Sim “Packages” folder and delete all fs-base* files and folders inside the “Packages” folder and restart the Sim. This will force the Sim to download all the files and replace any corrupted files.
DEFAULT INSTALLATION LOCATIONS

For the Windows Store install:
C:\Users\Username\AppData\Local\Packages\Microsoft.FlightSimulator_8wekyb3d8bbwe

For the Steam install:
C:\Program Files (x86)\Steam\steamapps\common\MicrosoftFlightSimulator

Important: Windows 10/11 by default hides the “AppData” folder,
so you will have to go to “View”
> in the menu of File Explorer, and select “Hidden items” to see it.

For Custom install:
If you happened to use a custom location for your Flight Simulator installation,
then proceed there.
  1. If the issue still persists
    → Do a clean install of the Sim
    How to repair or uninstall Microsoft Flight Simulator via the Xbox app
    How to uninstall Microsoft Flight Simulator on Steam
    How to install Microsoft Flight Simulator on Steam



Alternatively, you can try doing these steps to narrow down which file in particular is causing the problem, then delete just that file:

  • Go to Options -> General Options -> Developers
  • Turn Developer Mode "ON"

Dev

  • Go to Developer Toolbar
  • Go to "Debug" tab
  • Select "Console"

Devmode

Once you have the console open, you’ll want to look for a line with a red “X” or a Yellow Icon, this indicates the sim has an error loading some kind of texture or script. It will normally say something like “Failed to locate file vfs://fs-base/Textures/xxxxxx” Where the x’s are the failed texture.

This normally means the file is corrupt and the sim cannot load it correctly.

From here, you want to find that file in your "Packages" folder. If you don’t know where to find it, on the Devmode tool bar:

  • select “Tools”
  • select “Virtual File System”
  • select “Packages Folders”
  • select “Open Official Folder” and find your way to the folder you saw on the debug console

virtual

You can now close the Sim and delete this folder/file(s). Then restart the Sim, and it will download the deleted packages and this should resolve the issue.

Was this article helpful?
4 out of 5 found this helpful
